1 in stock
ℹ️ We are NOT an authorized distributor for KEYENCE
94 $
Ready for immediate dispatch.

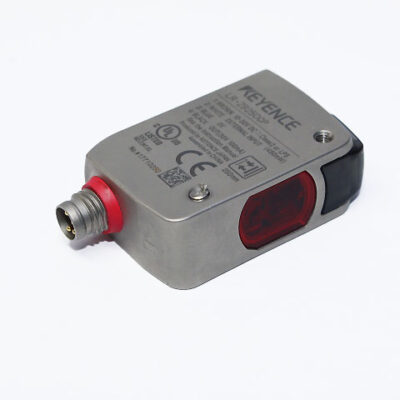

Manufacturer: KEYENCE
Type: Distance based laser sensor
Model: LR-ZB250CP
Output: PNP
Cable connection: M8 connector, 4-pin
Detectable distance: 35 to 250 mm
Standard detectable deviation:
-35 to 180 mm 1.38″ to 7.09″: 9 mm 0.35″
-180 to 250 mm 7.09″ to 9.84″: 25 mm 0.98″
Response time: 1.5 ms / 10 ms / 50 ms selectable
Indicator:
-3-digit 7-segment display (red),
-output indicator (yellow),
-DATUM indicator (orange),
1 spot indicator (green)
Timer: OFF/ON delay/OFF delay/One-shot
Power voltage: 10 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS
Power consumption: 450 mW or less (18 mA or less at 24 V, 34 mA or less at 12 V)
Ambient temperature: -10 to +50 °C
| Weight | 0.15 kg |
|---|---|
| Manufacturer | KEYENCE |
| Model | |
| Condition |
We offer a wide range of spare parts including automotive, industrial, electronic, and appliance parts, both new and used.
You can use our search bar at the top of the page or browse through categories to find the specific part you need.
Used parts come with 2 month warranty.
