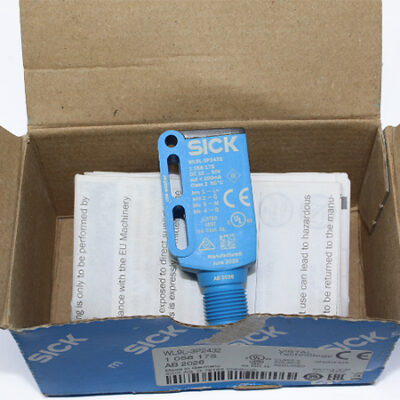

SICK WL9L-3P2432 Photoelectric sensors 1058175

Description

Manufacturer

SICK

Type

Photoelectric sensors

Model

WL9L-3P2432

Part No

1058175

Functional principle

Photoelectric retro-reflective sensor

Functional principle detail

Autocollimation

Dimensions (W x H x D)

12.2 mm x 52.2 mm x 23.6 mm

Housing design (light emission)

Rectangular

Mounting hole

M3

Sensing range max.

0 m … 12 m

Sensing range

0 m … 8 m

Type of light

Visible red light

Light source

Laser

Light spot size

(distance) Ø 1 mm (500 mm)

Wave length

650 nm

Laser class

1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)

Adjustment

Single teach-in button

Special applications

Detecting small objects

Supply voltage

10 V DC … 30 V DC

Ripple

< 5 Vpp

Current consumption

30 mA

Switching output

PNP
