1 in stock
ℹ️ We are NOT an authorized distributor for LEUZE
Ready for immediate dispatch.
NEW
Manufacturer: LEUZE

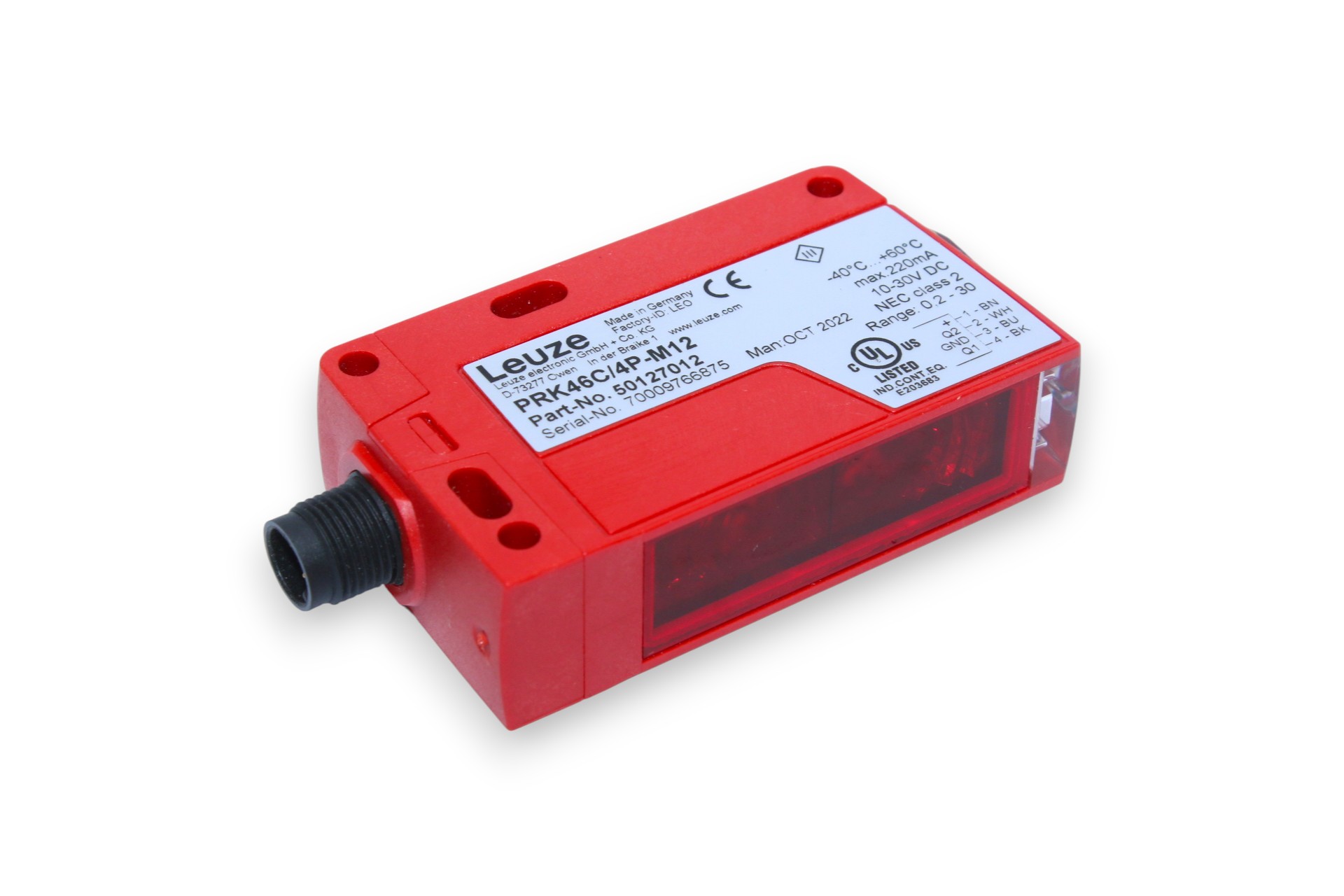

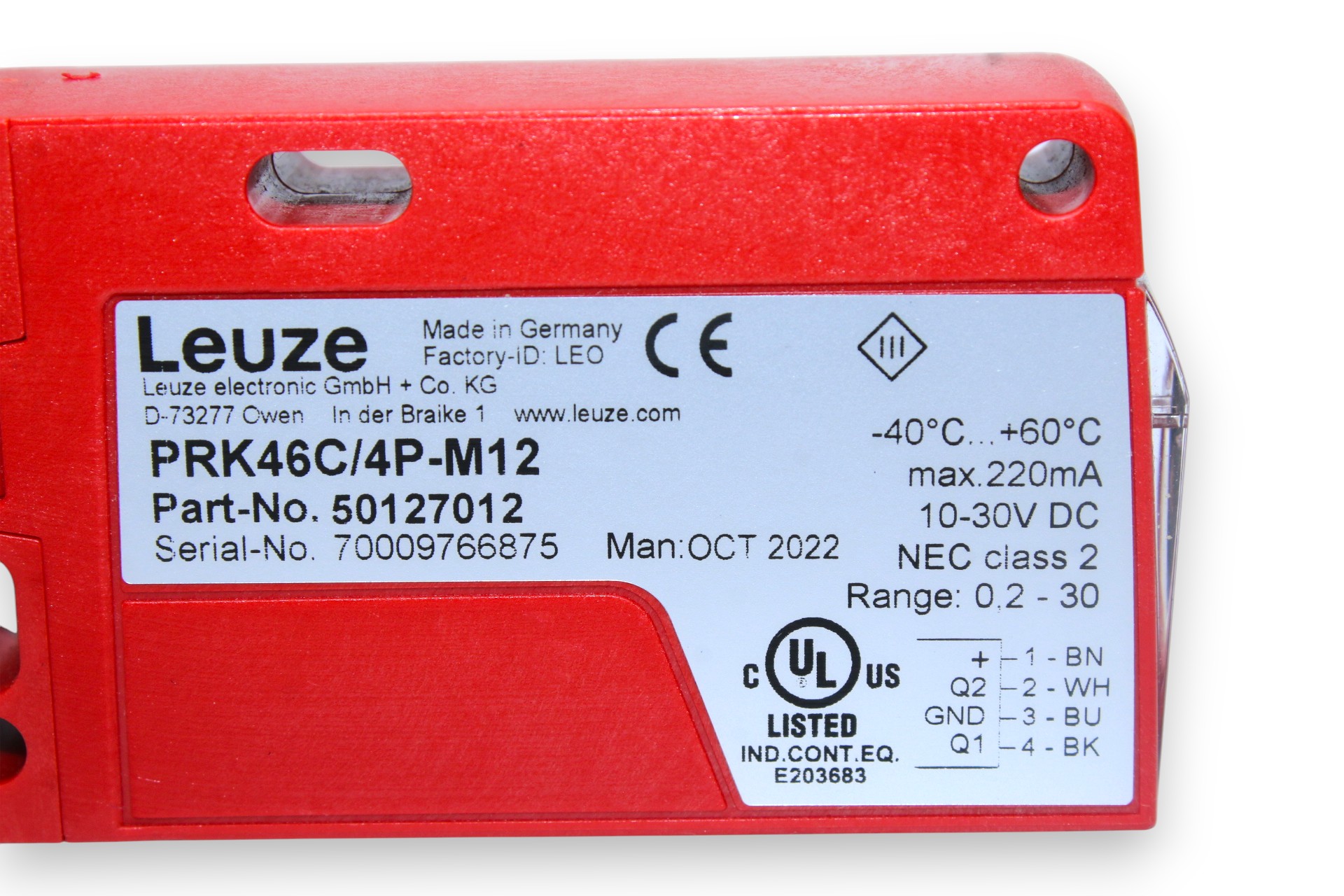

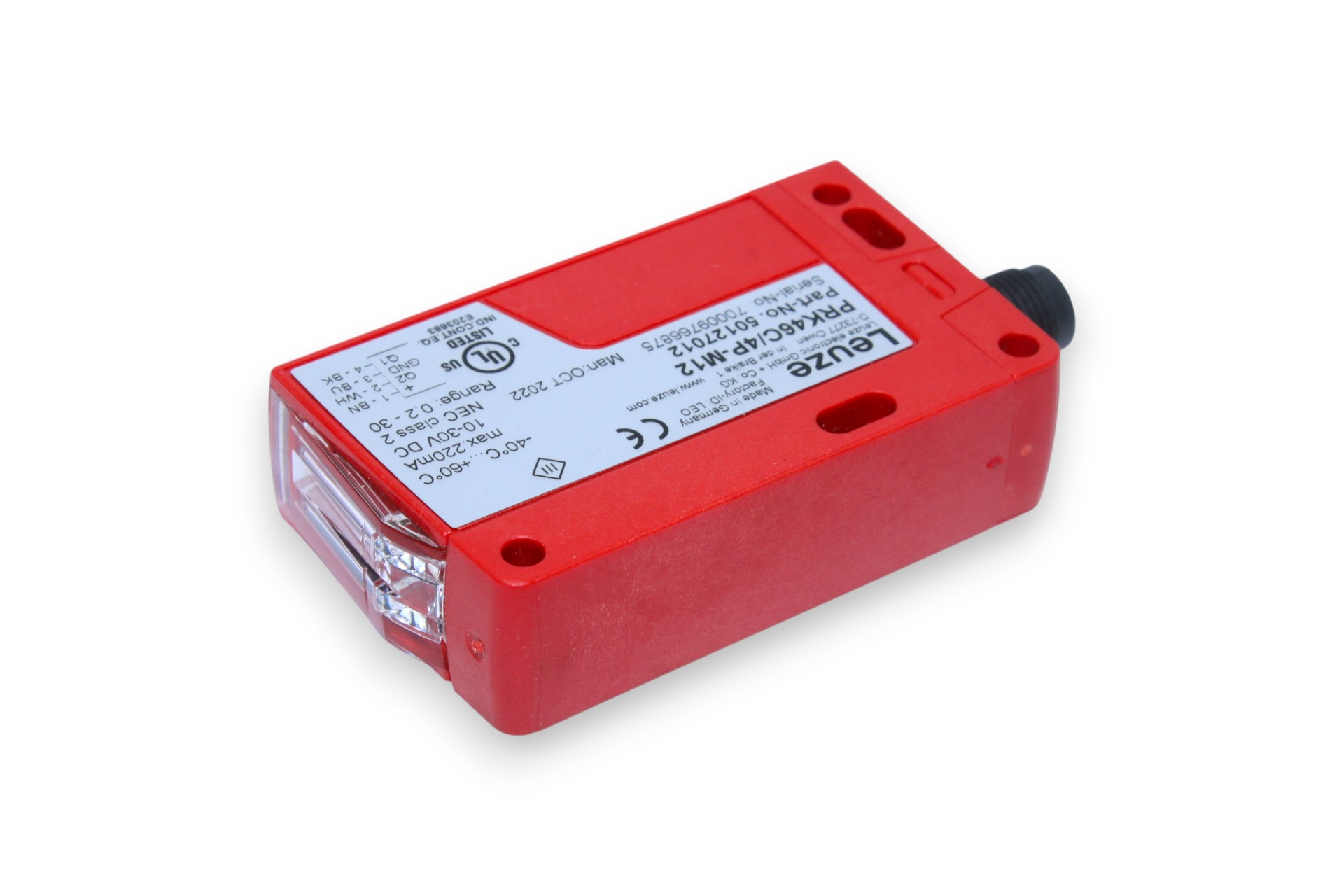

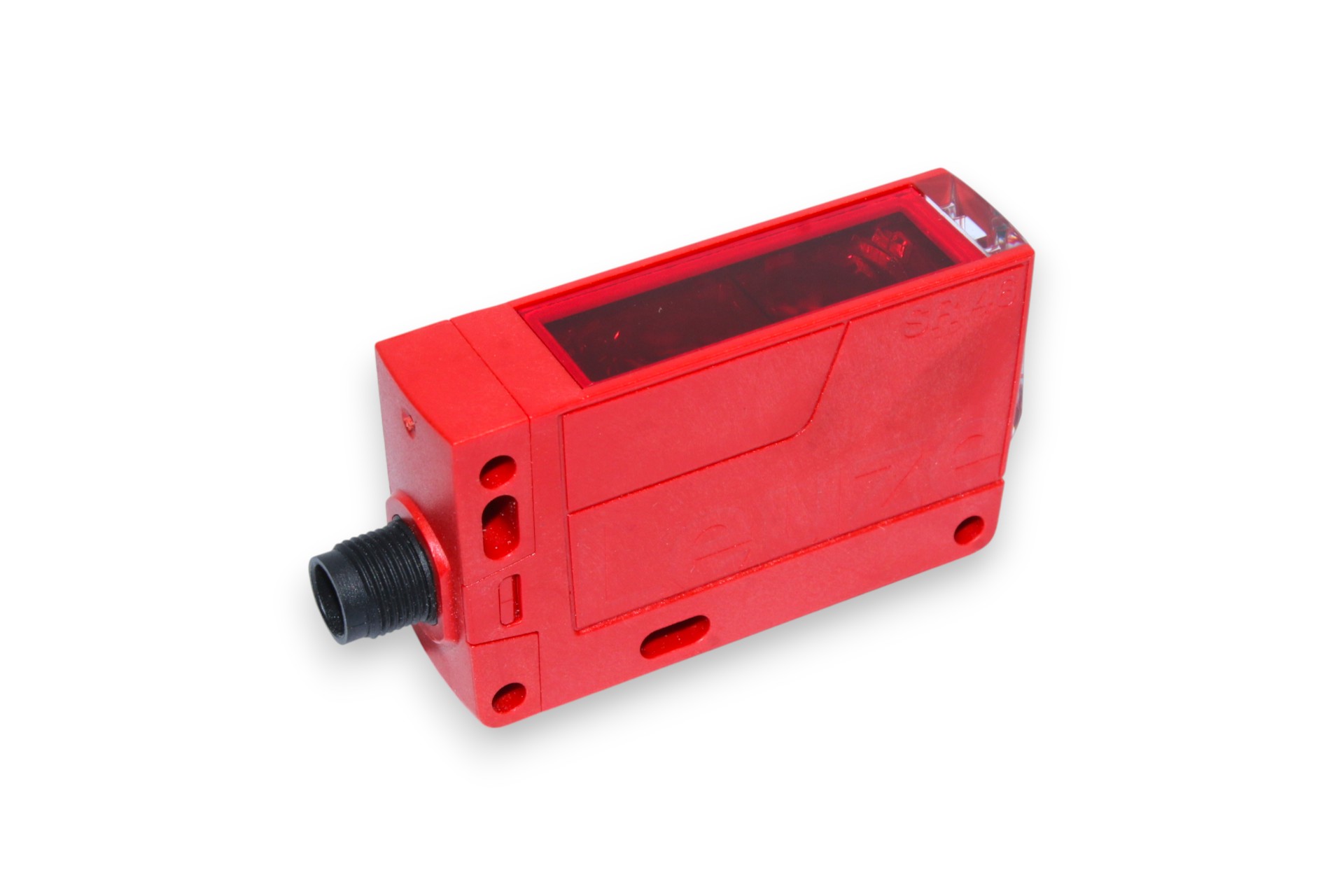

Type: POLARIZED RETRO-REFLECTIVE PHOTOELECTRIC SENSOR
Model: PRK46C/4P-M12
Part No: 50127012
Operating range: 0.1 … 24 m (guaranteed operating range), With reflector TK(S) 100×100
Operating range limit: 0.1 … 30 m
Wavelength: 630 nm
Supply voltage: 10 … 30 VDC
Open-circuit current: 0 … 20 mA
Switching element: Transistor, PNP
No. of pins: 4-pin

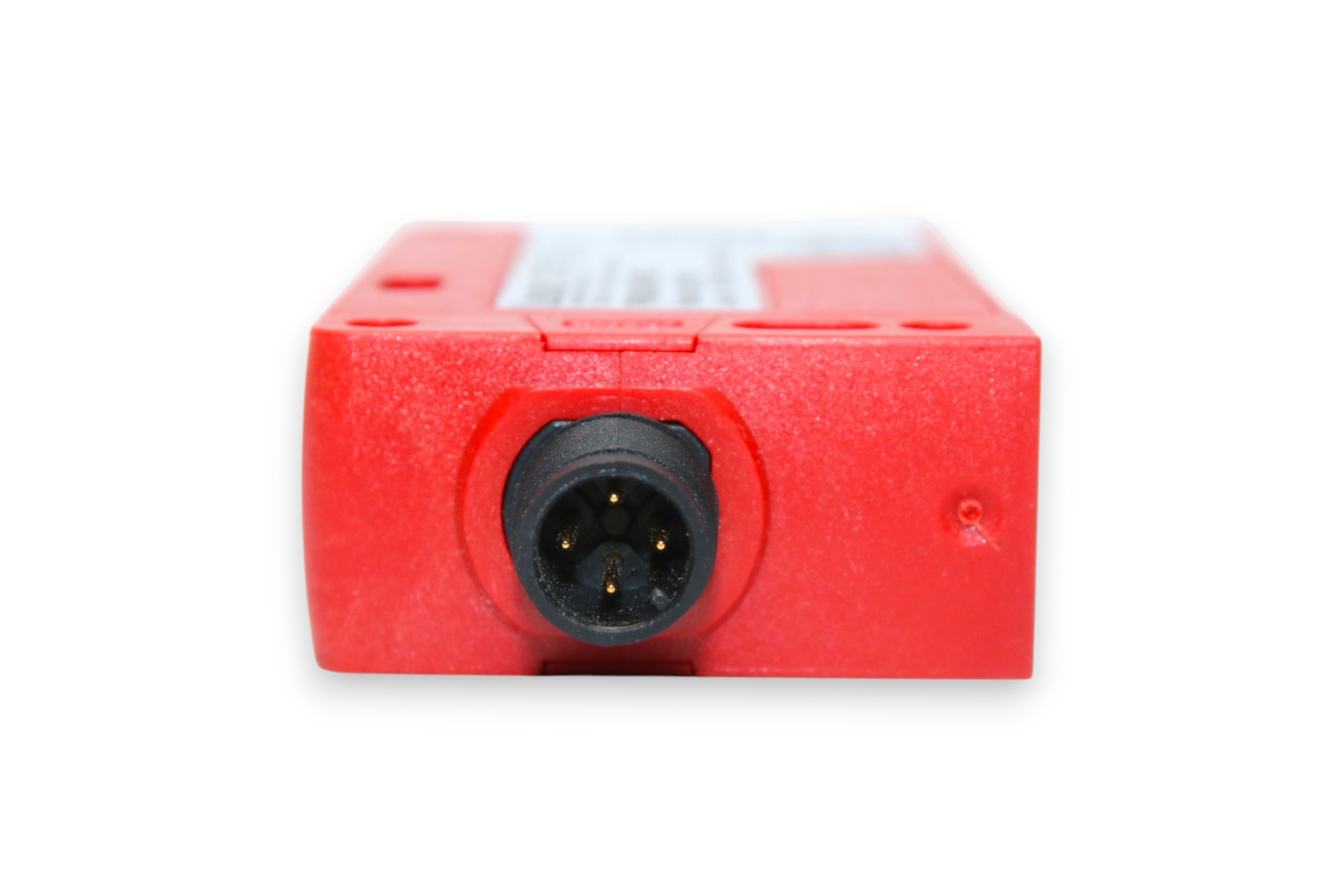

Thread size: M12
Ambient temperature (operation): -40 … 60 °C
Dimensions (W x H x L): 20.5 mm x 76.3 mm x 44 mm
| Weight | 0.100 kg |
|---|---|
| Manufacturer | LEUZE |
| Model | |
| Part Number | 50127012 |
| Condition |
We offer a wide range of spare parts including automotive, industrial, electronic, and appliance parts, both new and used.
You can use our search bar at the top of the page or browse through categories to find the specific part you need.
Used parts come with 2 month warranty.
