1 in stock
ℹ️ We are NOT an authorized distributor for KEYENCE
47 $
Ready for immediate dispatch.

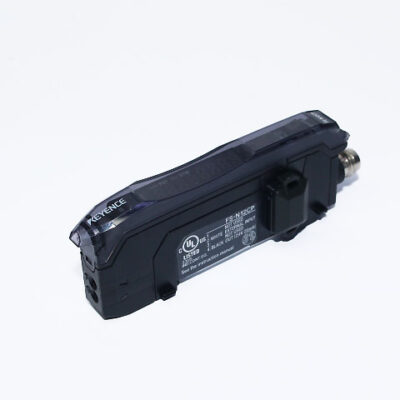

Manufacturer: KEYENCE
Type: Fiber Amplifier
Model: FS-N12CP
Type: Standard 1 output, M8 connector*1
Output: PNP
Power voltage: 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
Current Consumption:
-Normal: 950 mW or less (39 mA max. at 24 V, 52 mA max. at 12 V)*2
-Eco on mode: 850 mW or less (35 mA max. at 24 V, 44 mA max. at 12 V)*2
-Eco Full mode: 520 mW or less (21 mA max. at 24 V, 26 mA max. at 12 V)
Ambient light: Incandescent lamp: 20,000 lux or less, Sunlight: 30,000 lux or less
Ambient temperature: -20 to +55 °C
Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions
Shock resistance: 500 m/s2, 3 times in each of the X, Y, and Z directions
| Weight | 0.1 kg |
|---|---|
| Manufacturer | KEYENCE |
| Model | |
| Condition |
