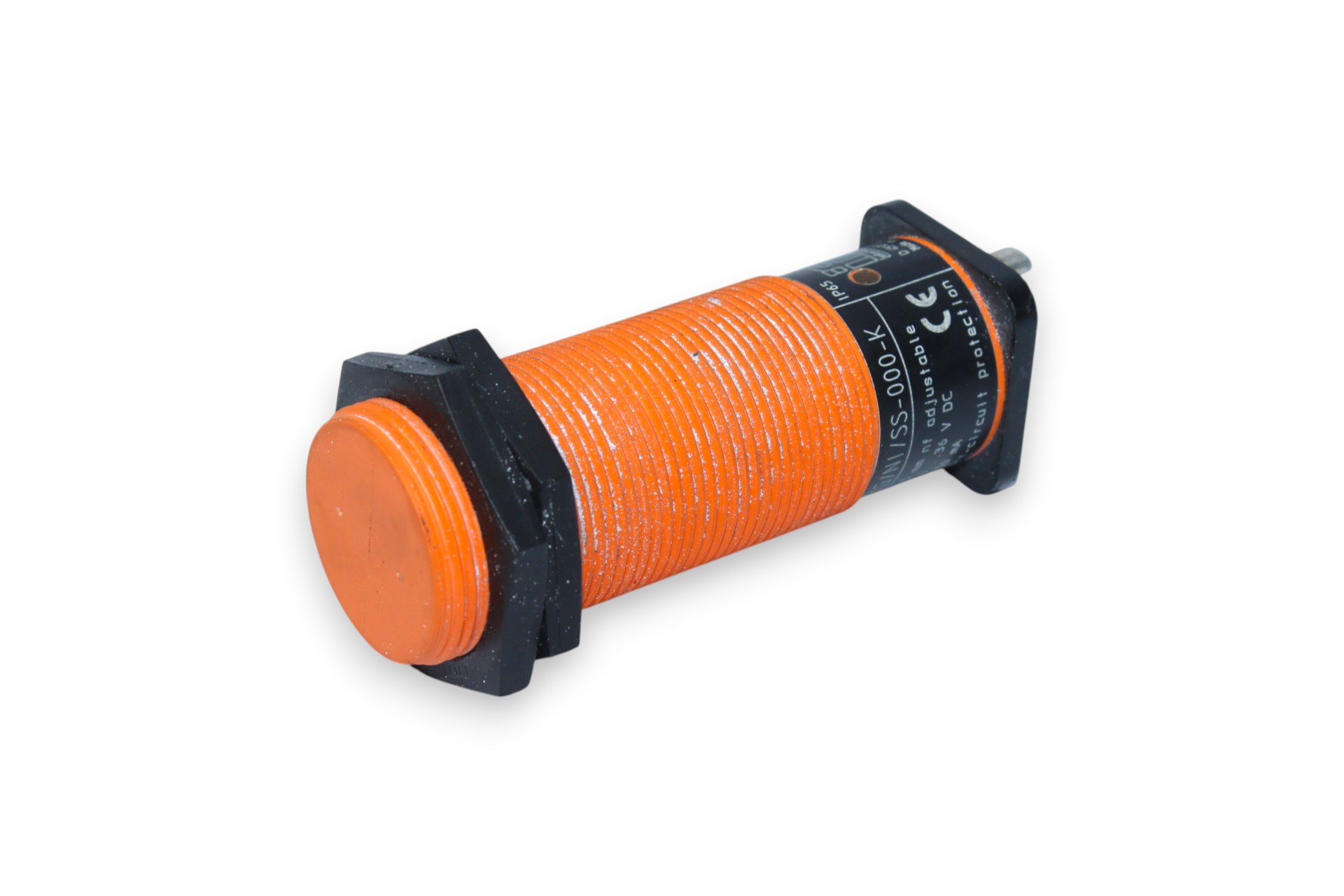

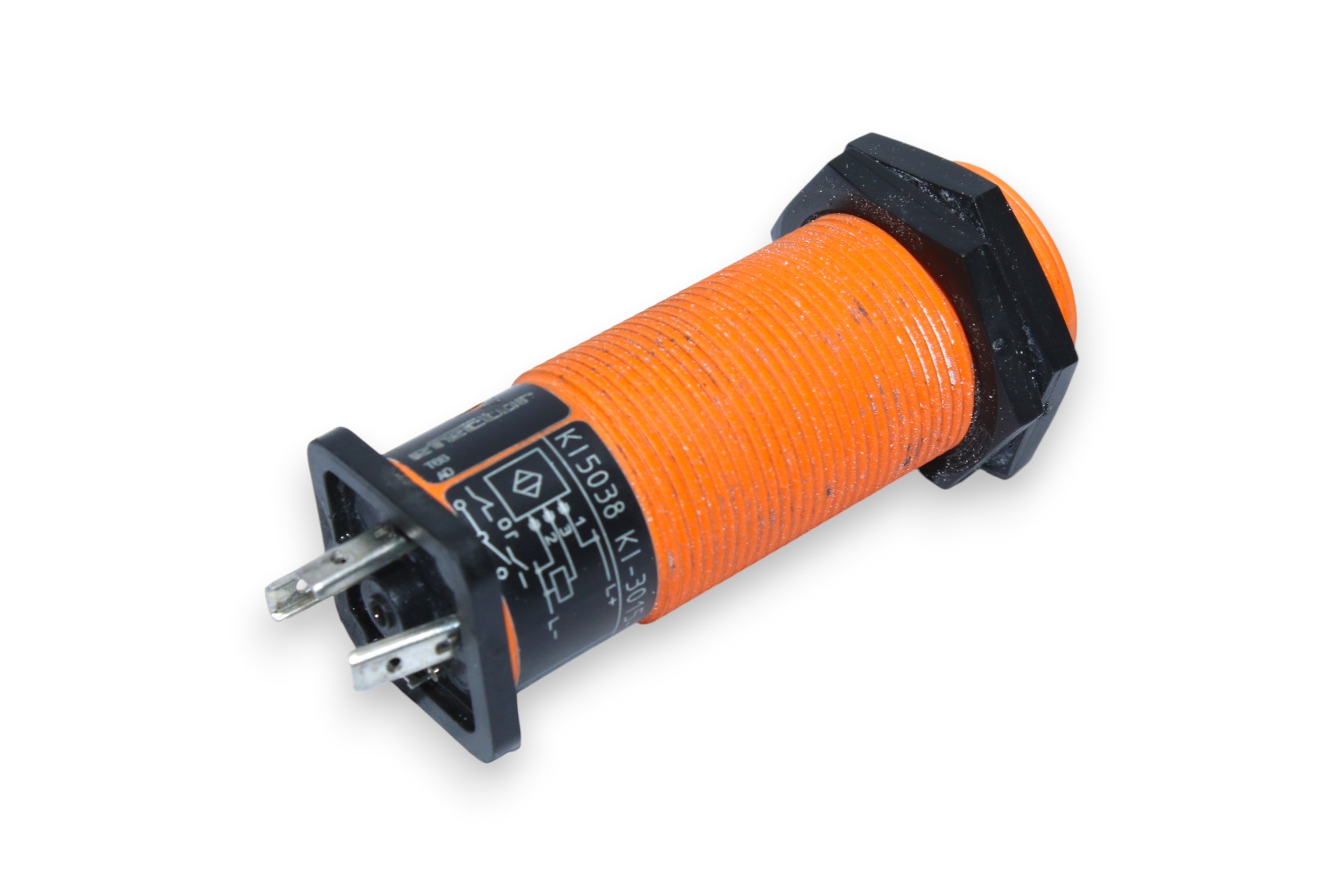

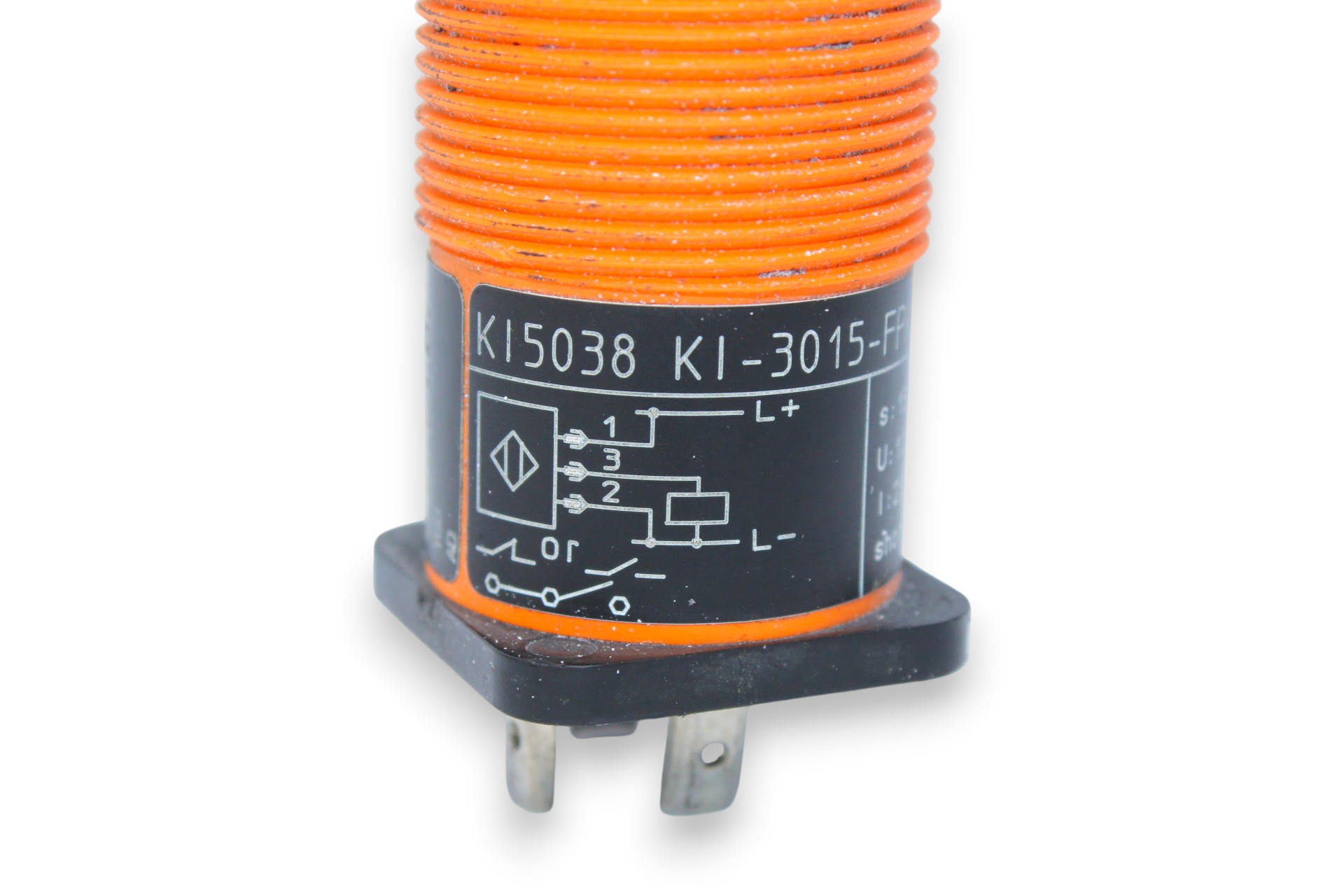

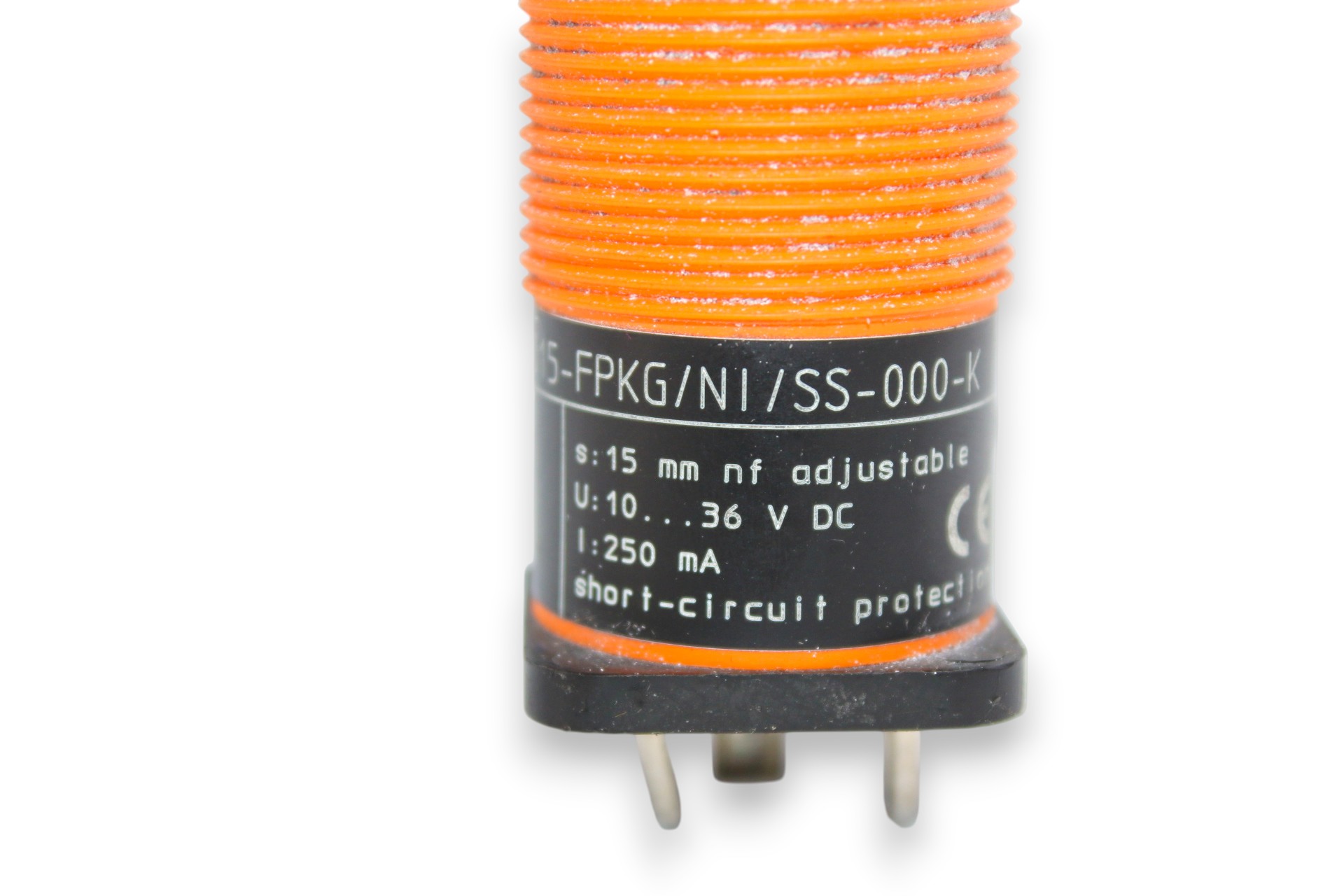

IFM KI5038 Capacitive Sensor “KI-3015-FPKG/NI/SS-000-K “

Manufacturer: IFM Electronic
Type: Capacitive Sensor
Model: KI5038
Part No.: KI-3015-FPKG/NI/SS-000-K

ELECTRICAL DESIGN: PNP
OUTPUT FUNCTION: Normally Open / Normally Closed (Selectable)
SENSING RANGE: 15 MM
HOUSING: Threaded Type
DIMENSIONS: M30 x 1.5 / L = 92 MM

OPERATING VOLTAGE: 10…36 V DC
CURRENT CONSUMPTION: 13 mA (at 24 V)
PROTECTION CLASS: III
REVERSE POLARITY PROTECTION: Yes

MAX. VOLTAGE DROP (DC): 2.5 V
PERMANENT CURRENT RATING: 250 mA
SWITCHING FREQUENCY: 40 Hz
SHORT-CIRCUIT PROOF: Yes
OVERLOAD PROTECTION: Yes

REAL SENSING RANGE (Sr): 15 ± 10 % MM
OPERATING DISTANCE: 0…12.1 MM
CORRECTION FACTOR: Glass: 0.4 / Water: 1 / Ceramics: 0.2 / PVC: 0.2
HYSTERESIS: 1…15 % of Sr
SWITCH POINT DRIFT: -15…15 % of Sr

AMBIENT TEMPERATURE: -25…70 °C
PROTECTION RATING: IP65
INCREASED IMMUNITY: Yes (to conducted RF interference)
STANDARDS / APPROVALS: EN 60947-5-2

MOUNTING: Non-Flush Mountable
THREAD DESIGNATION: M30 x 1.5
MATERIALS: Housing: PBT
