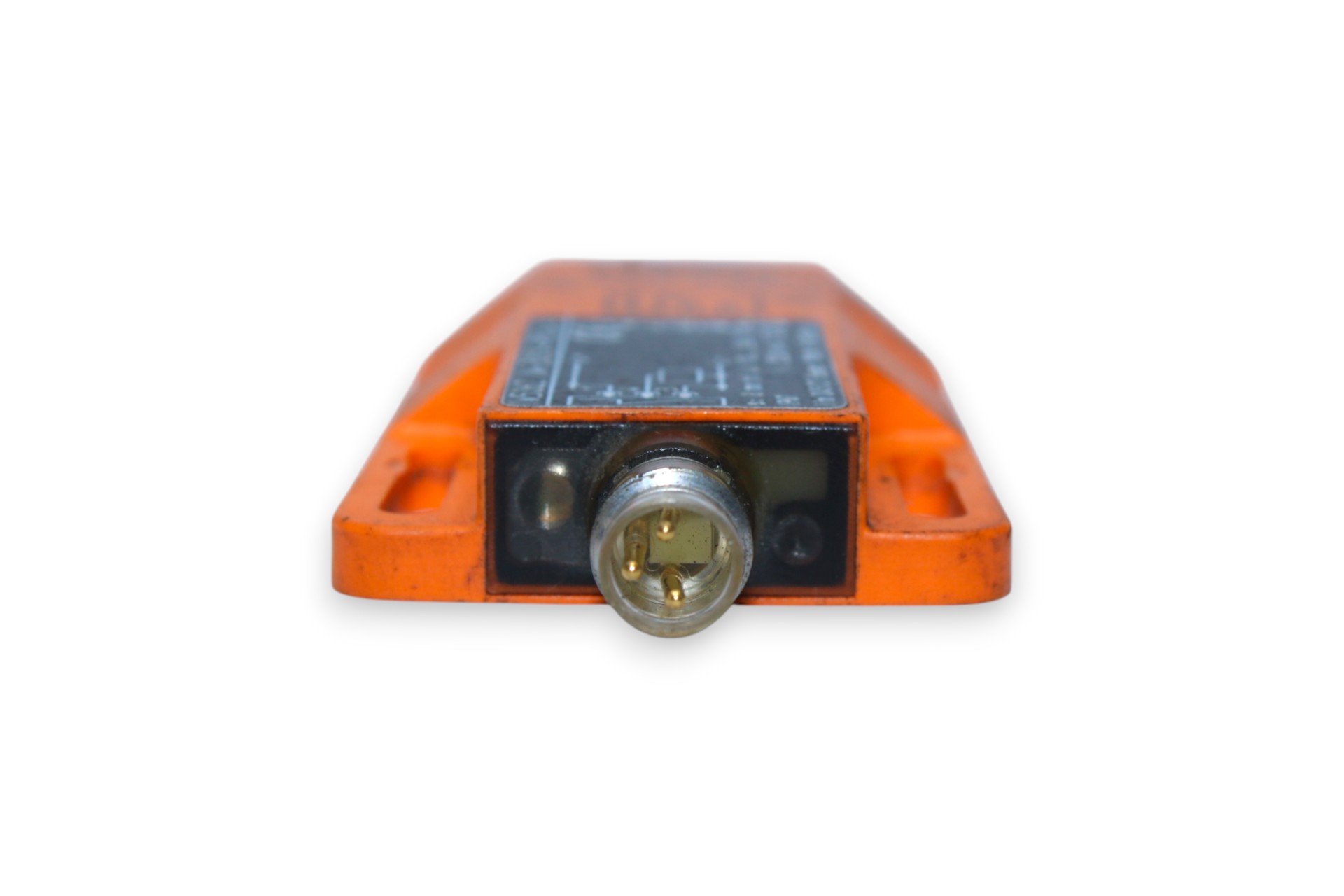

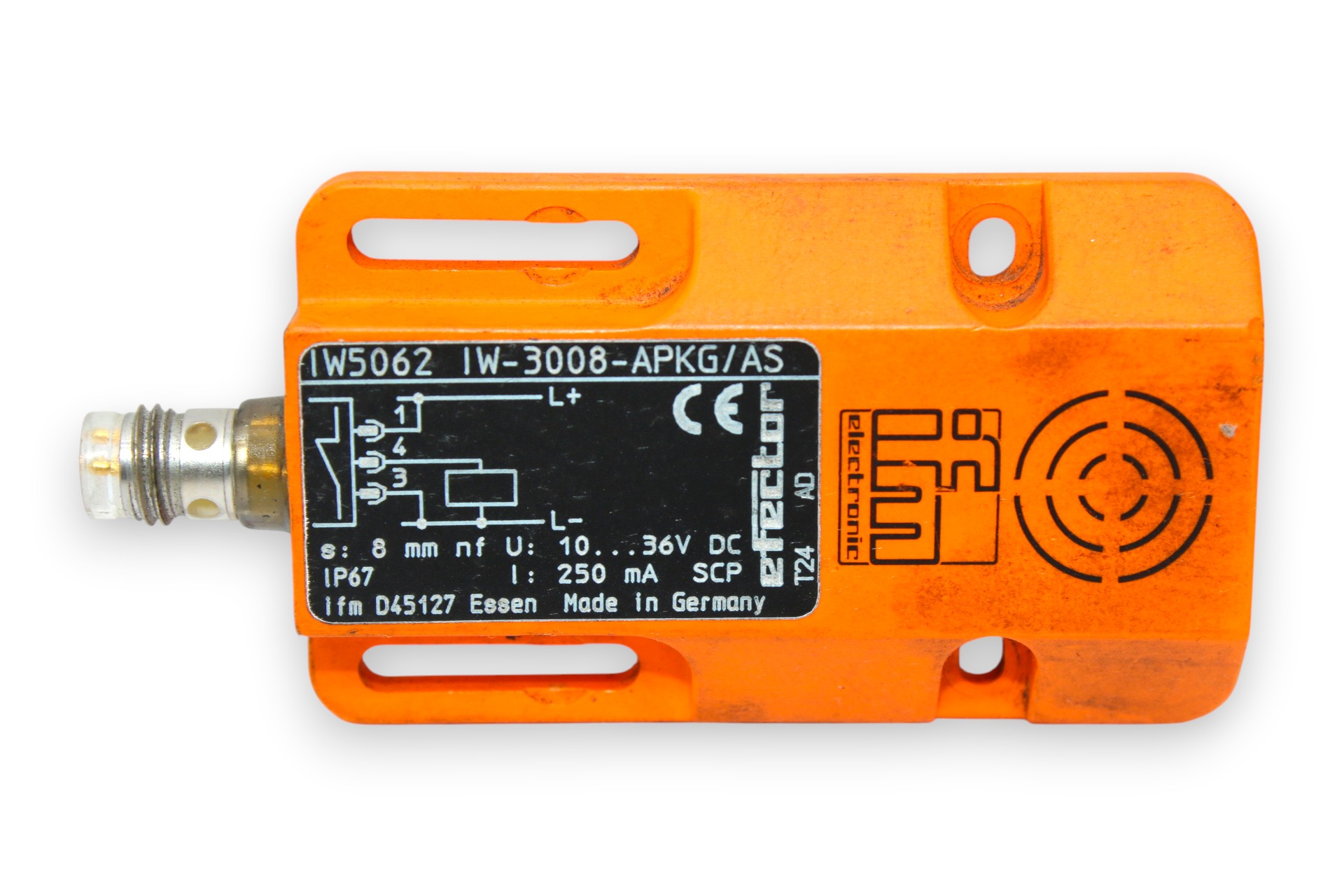

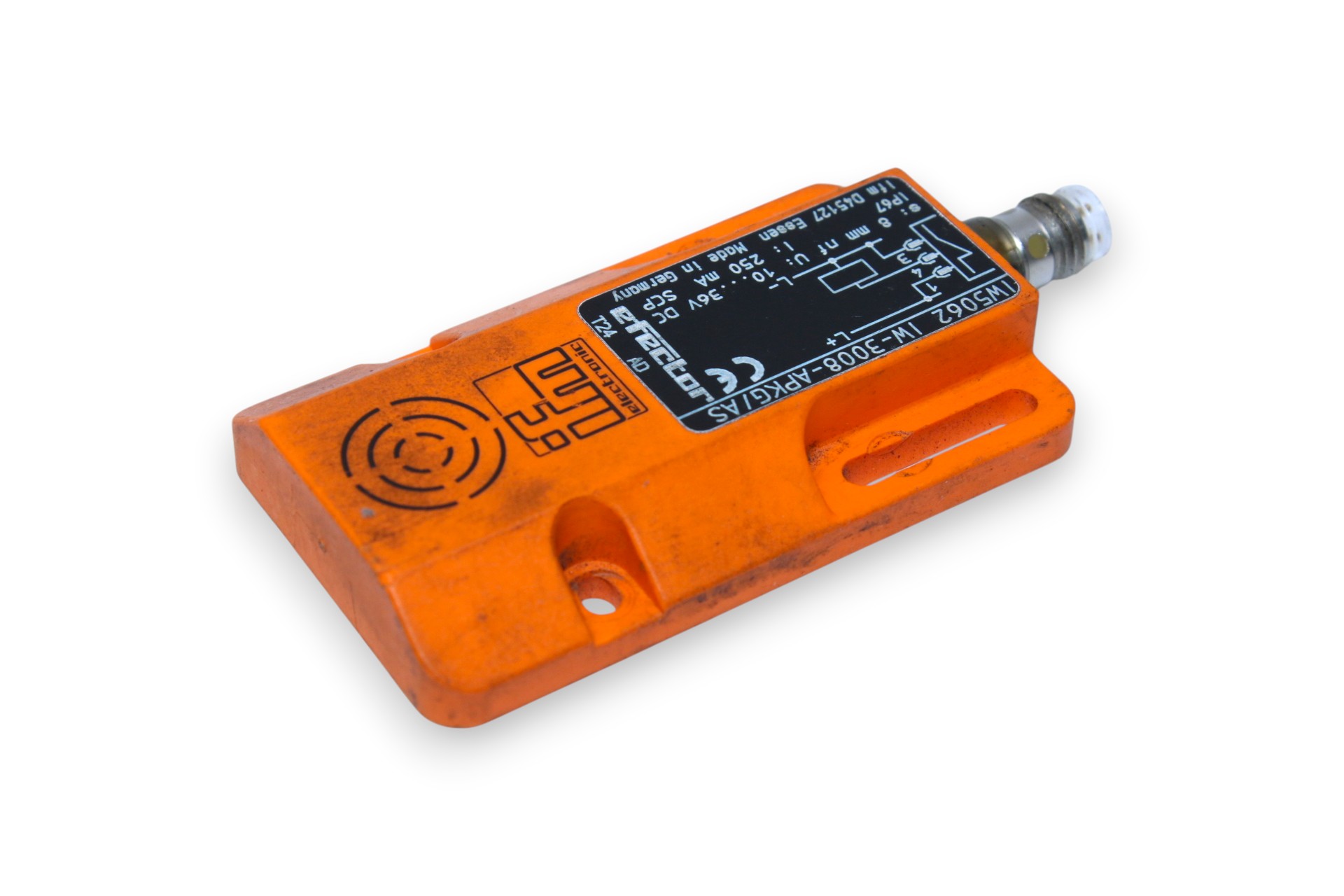

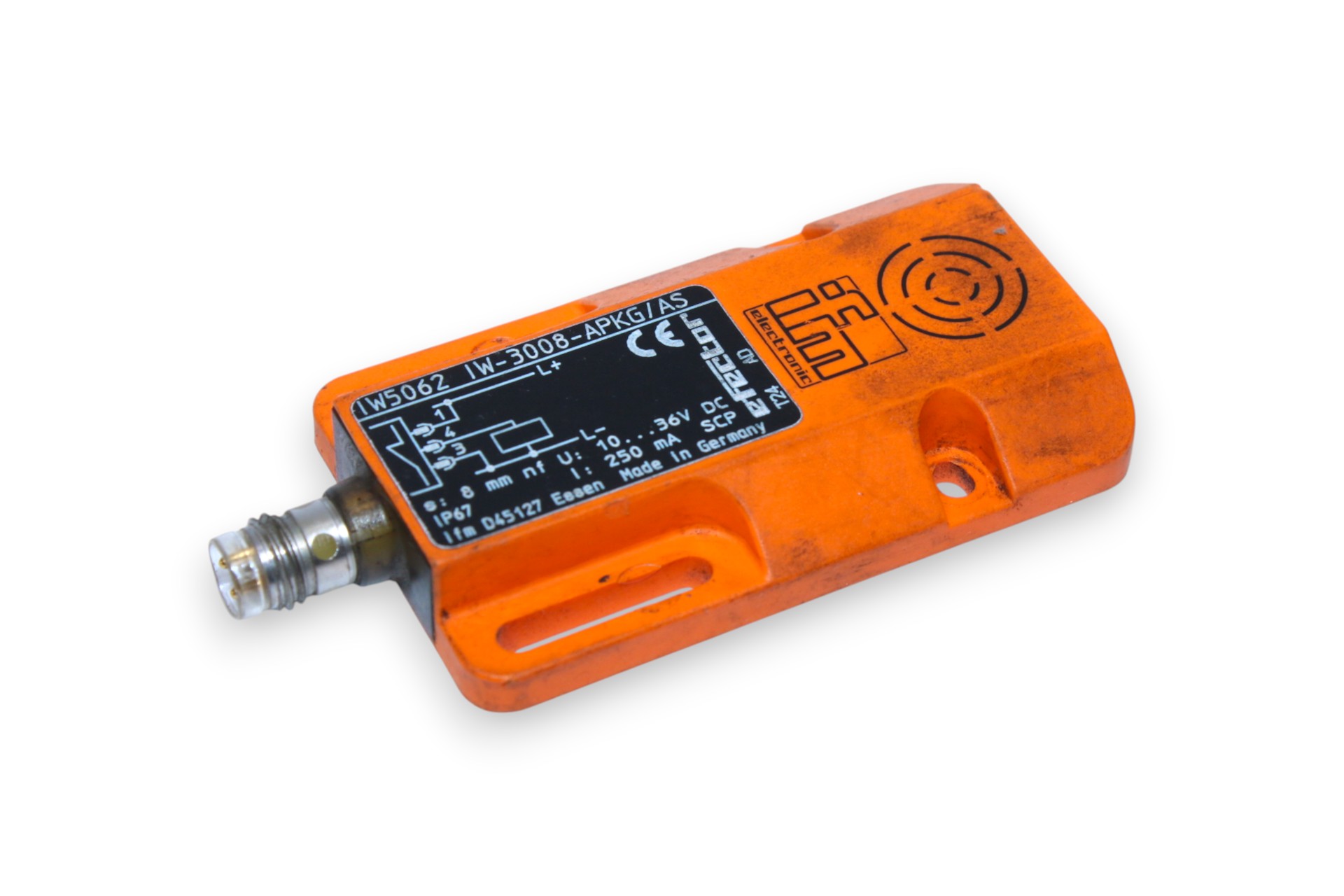

IFM IW5062 Inductive Sensor “IW-3008-APKG/AS “

Description

Manufacturer

IFM ElectronicType: Inductive SensorModel: W5062Part No.: IW-3008-APKG/AS

ELECTRICAL DESIGN

PNPOUTPUT FUNCTION: Normally ClosedOPERATING VOLTAGE: 10–36 V DCCURRENT CONSUMPTION: 5 mA (at 24 V)MAX. VOLTAGE DROP SWITCHING OUTPUT: 2.5 VPERMANENT CURRENT RATING: 250 mASWITCHING FREQUENCY: 300 HzSHORT-CIRCUIT PROTECTION: Yes (non-latching)OVERLOAD PROTECTION: YesREVERSE POLARITY PROTECTION: Yes

SENSING RANGE

8 MMREAL SENSING RANGE (Sr): 8 ± 10 %OPERATING DISTANCE: 0–6.5 MMCORRECTION FACTOR: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.4 / Aluminum: 0.3 / Copper: 0.2HYSTERESIS [% of Sr]: 3–15SWITCH-POINT DRIFT [% of Sr]: -10…10

HOUSING

Rectangular, PBTMOUNTING: Non-Flush MountableDIMENSIONS: 60 x 36 x 10 MMPROTECTION RATING: IP65 (with IFM socket properly screwed on: IP67)AMBIENT TEMPERATURE: -25…80 °CWEIGHT: 24.9 g

ELECTRICAL CONNECTION

1 x M8 connector, coding ADISPLAY / OPERATING ELEMENTS: 1 x LED (yellow) for switching status
