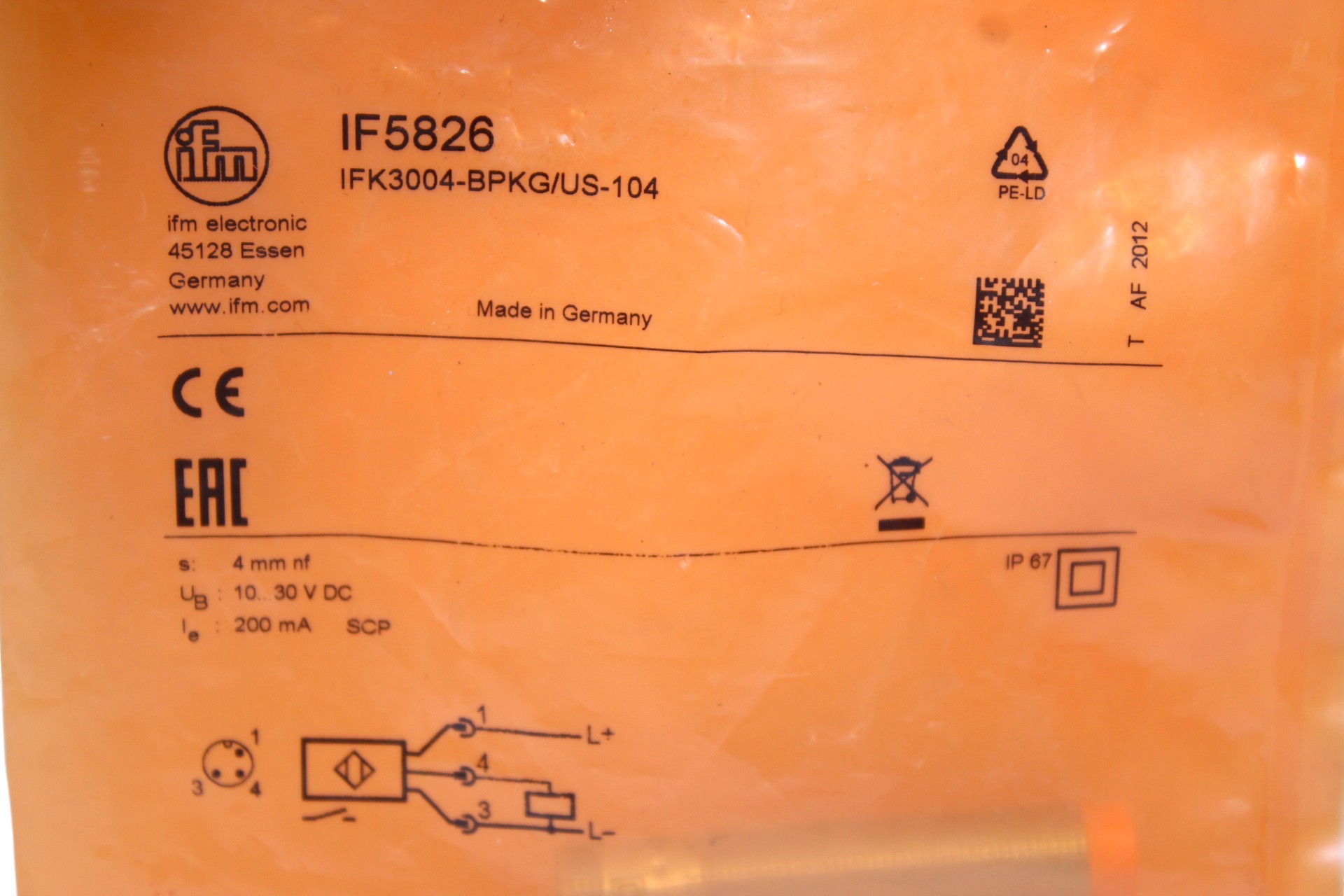

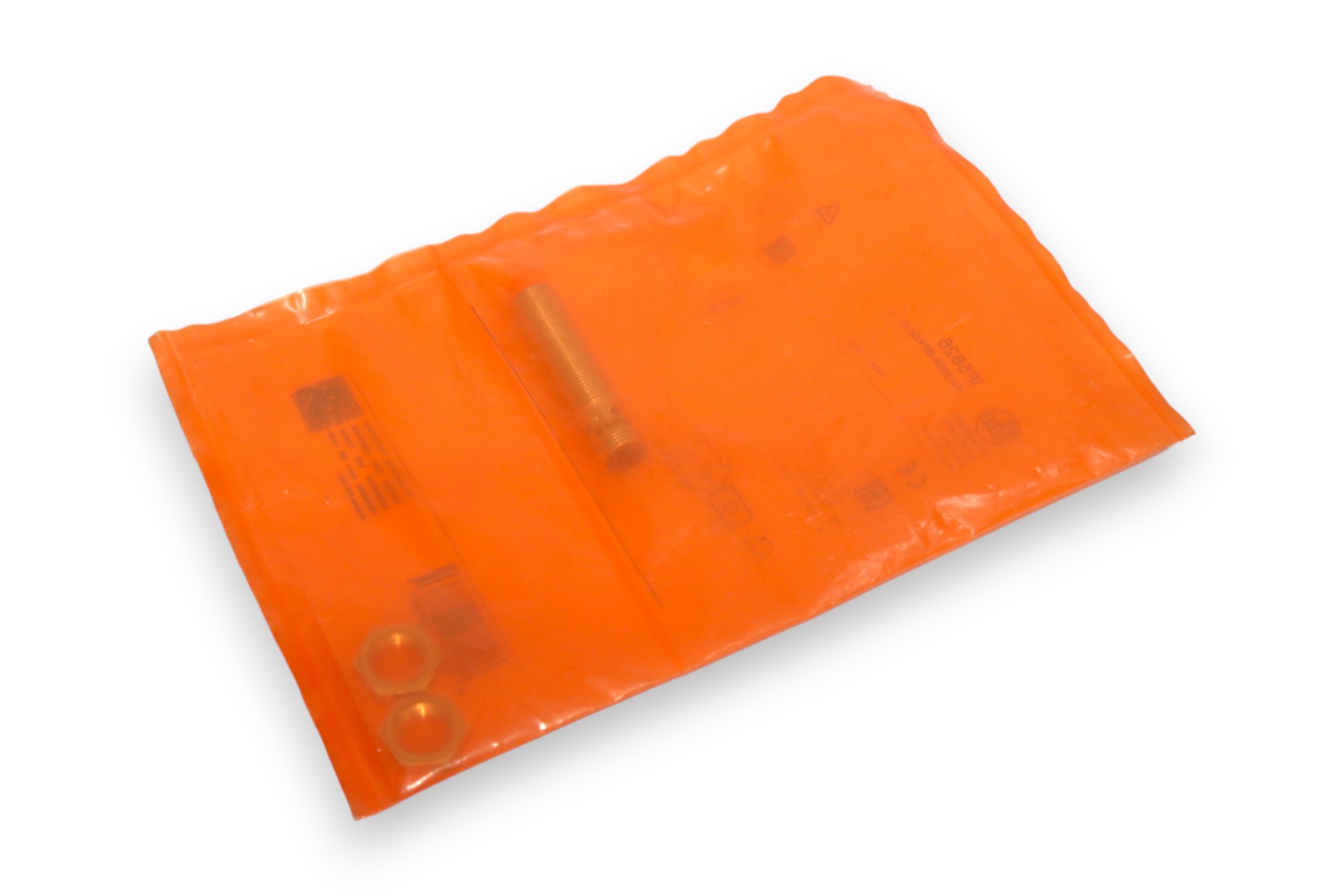

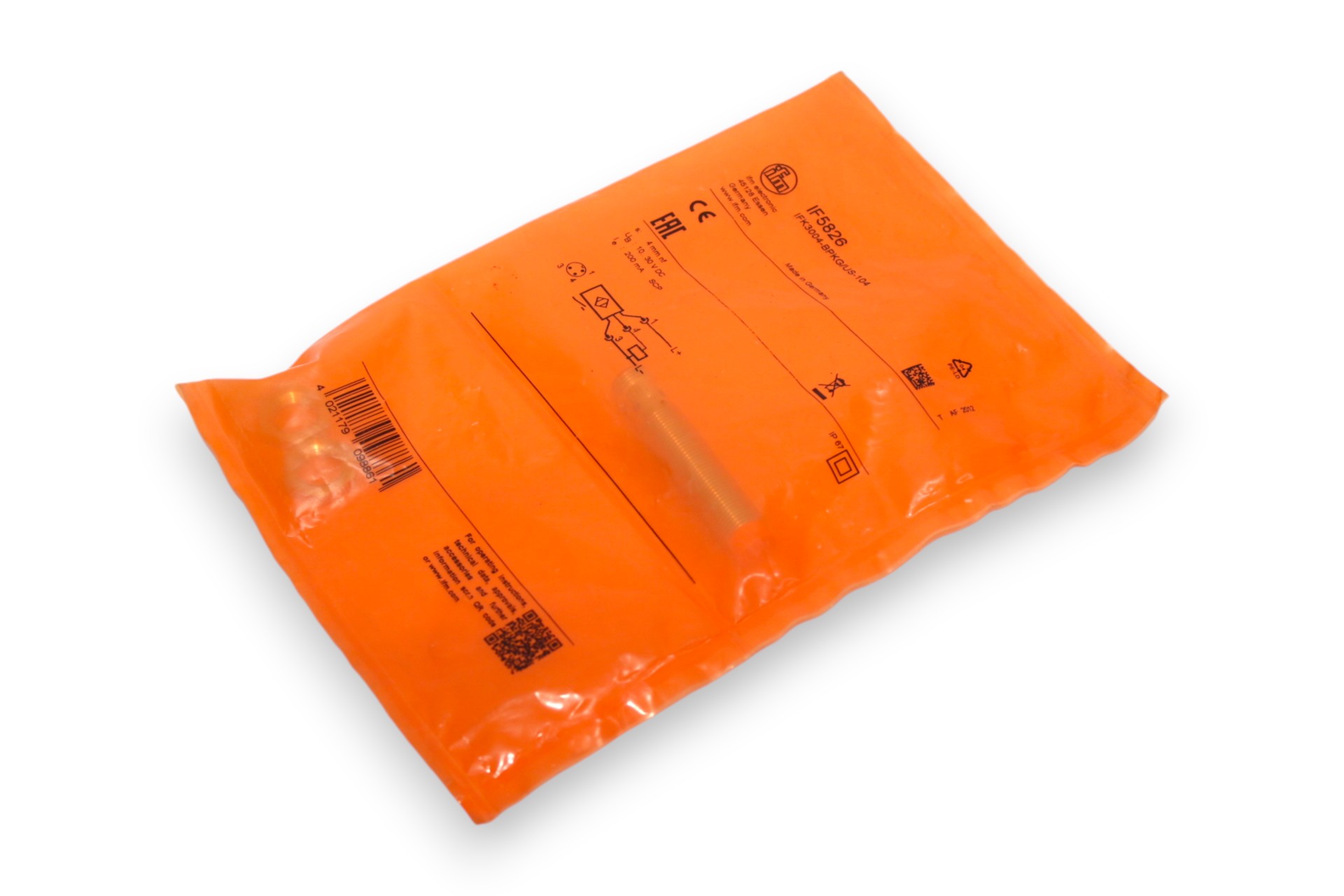

IFM IF5826 Inductive Sensor IFK3004-BPKG/US-104

Manufacturer: IFM Electronic
Type: Inductive Sensor
Model: IF5826
Part No.: IFK3004-BPKG/US-104

ELECTRICAL DESIGN: PNP
OUTPUT FUNCTION: Normally Open
SENSING RANGE: 4 MM
HOUSING: Threaded Type
DIMENSIONS: M12 x 1 / L = 60 MM
SPECIAL FEATURE: Gold-Plated Contacts

OPERATING VOLTAGE: 10…30 V DC
CURRENT CONSUMPTION: < 10 mA
PROTECTION CLASS: II
REVERSE POLARITY PROTECTION: Yes

MAX. VOLTAGE DROP (DC): 2.5 V
PERMANENT CURRENT RATING: 250 mA
SWITCHING FREQUENCY: 1400 Hz
SHORT-CIRCUIT PROTECTION: Yes
OVERLOAD PROTECTION: Yes

REAL SENSING RANGE (Sr): 4 ± 10 % MM
OPERATING DISTANCE: 0…3.24 MM
CORRECTION FACTOR: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.5 / Aluminium: 0.4 / Copper: 0.3
HYSTERESIS: 3…15 % of Sr
SWITCH POINT DRIFT: -10…10 % of Sr

AMBIENT TEMPERATURE: -25…80 °C
PROTECTION RATING: IP67
STANDARDS / APPROVALS: EN 60947-5-2, EN 55011 Class B

MOUNTING: Non-Flush Mountable
THREAD DESIGNATION: M12 x 1
