Manufacturer: IFM
Type: Inductive sensor

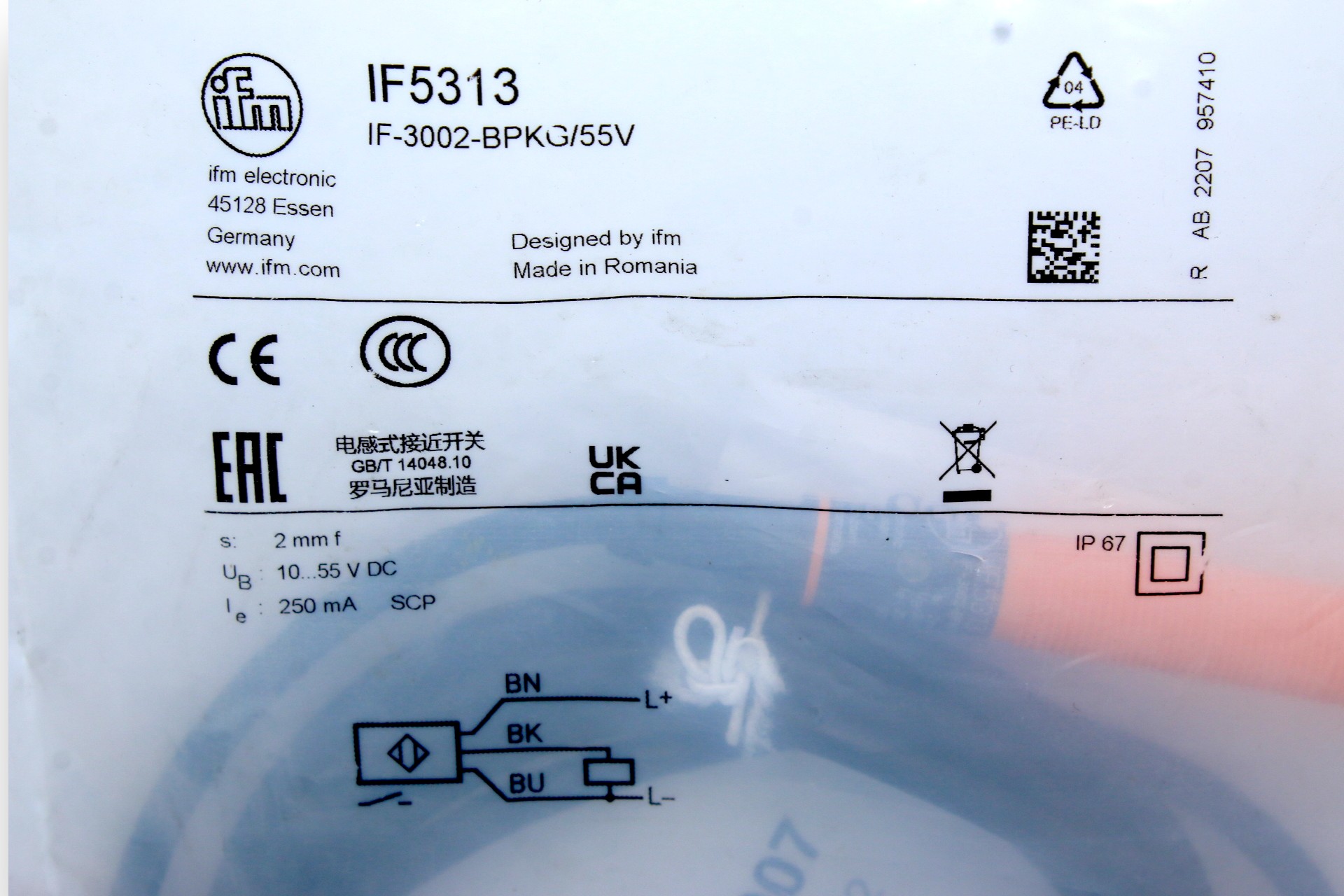

Model: IF5313
Part No: IF-3002-BPKG/55V
Electrical Design: PNP
Output Function: Normally open
Sensing Range [mm]: 2
Housing: Threaded type
Dimensions [mm]: M12 × 1 / L = 71
Operating Voltage [V]: 10 … 55 DC
Current Consumption [mA]: 15 (24 V)
Protection Class: II
Reverse Polarity Protection: Yes
Real Sensing Range Sr [mm]: 2 ± 10 %
Operating Distance [mm]: 0 … 1.6
Ambient Temperature [°C]: -25 … 80
Protection: IP67
