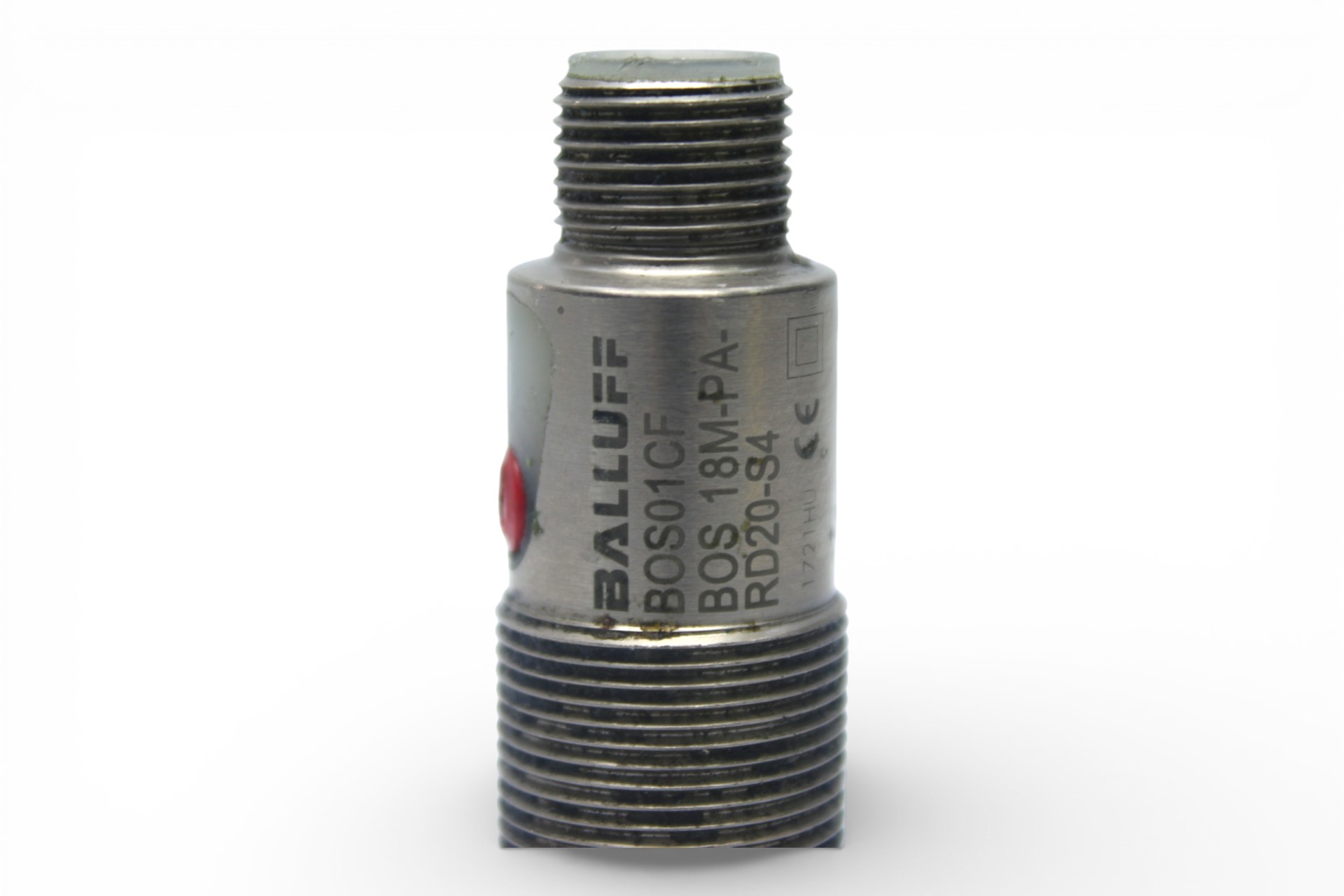

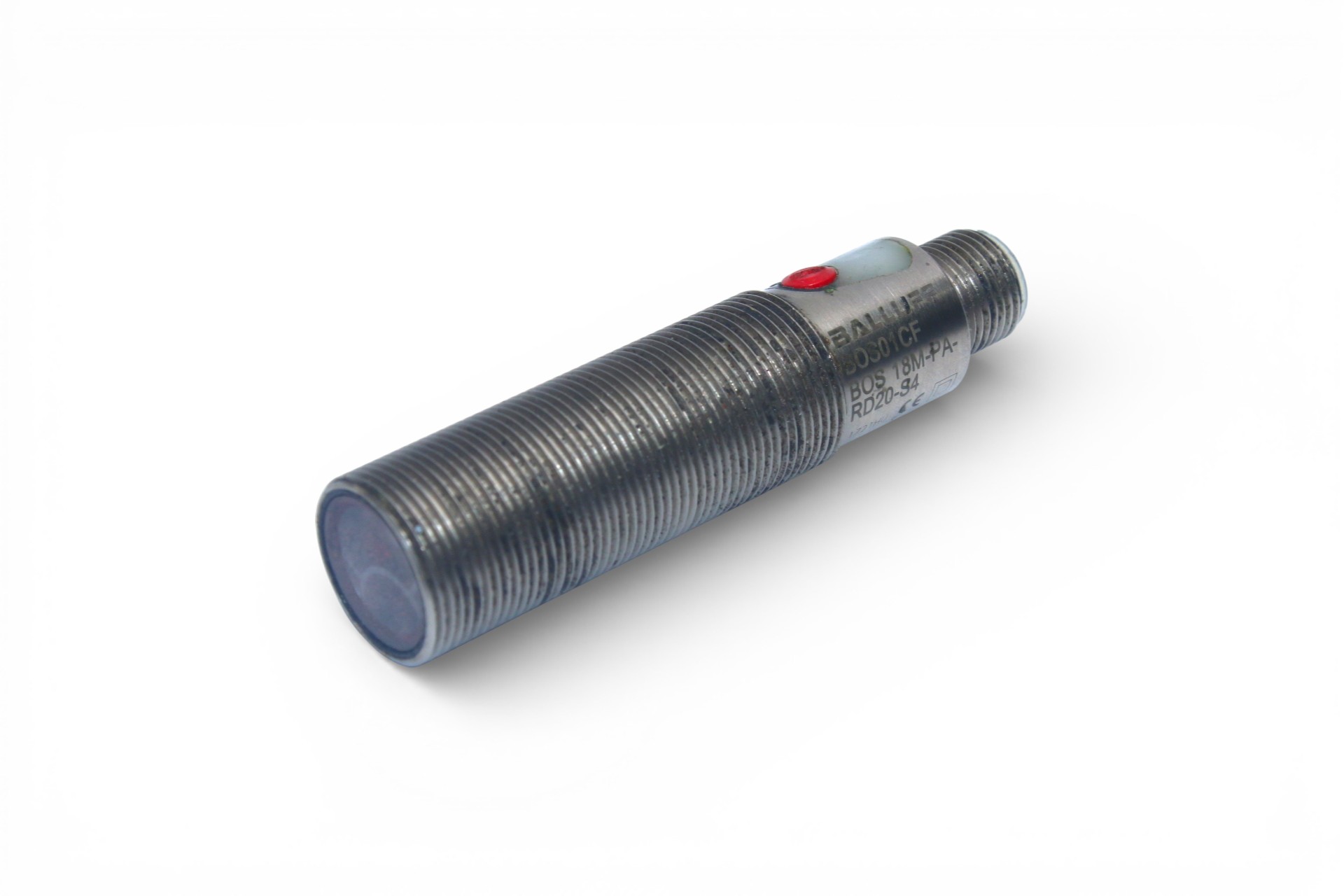

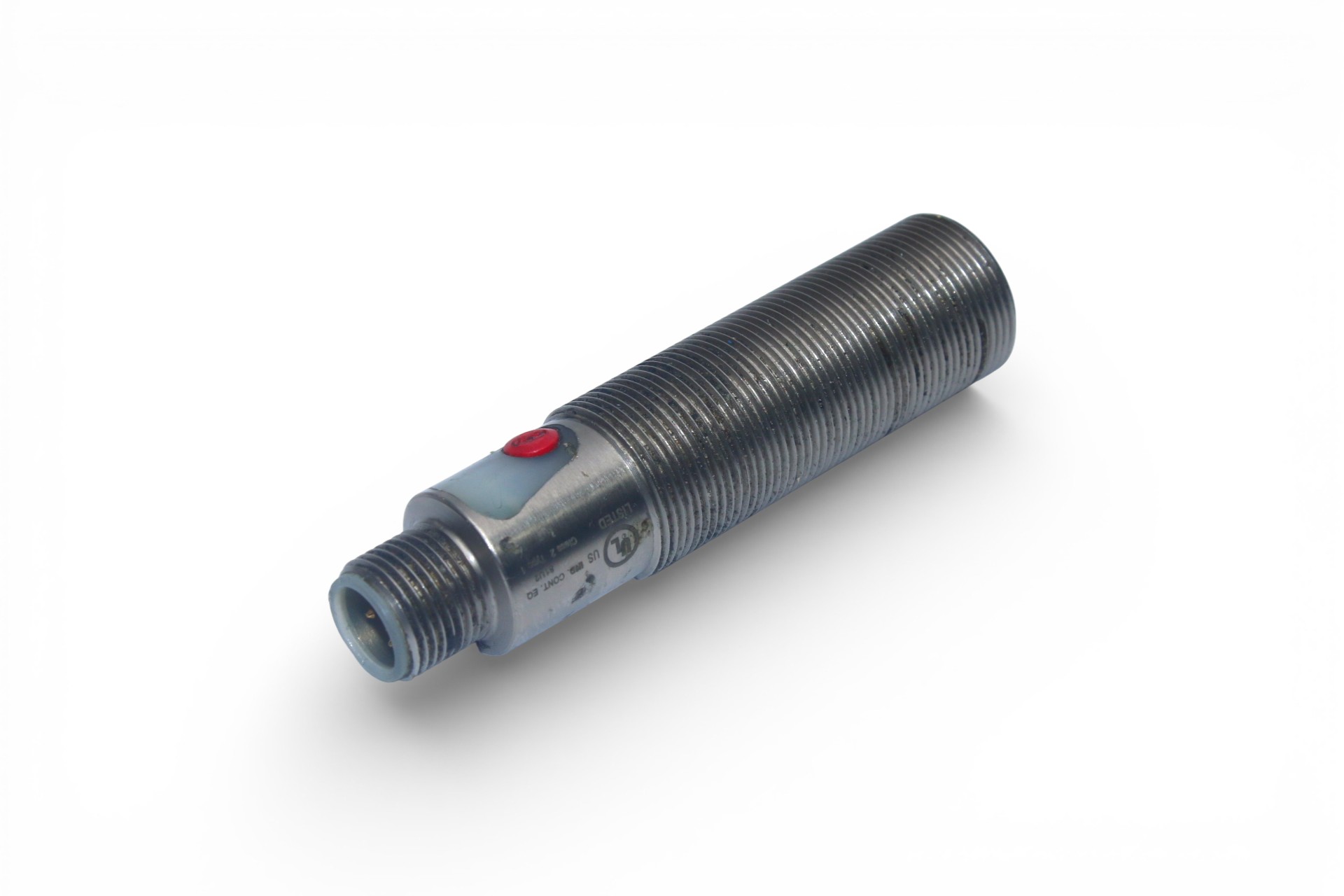

Manufacturer: BALLUFF
Type: Diffuse sensors
Model: BOS 18M-PA-RD20-S4
Part No.: BOS01CF
Series: 18M
Dimension: Ø 18 × 75 mm
Interface: PNP normally open (NO) / PNP normally closed (NC)
Principle of Operation: Photoelectric sensor
Principle of Optical Operation: Diffuse sensor, energetic
Beam Characteristic: Divergent
Light Type: LED, red light
Light Spot Size: Ø 50 mm at 600 mm
Range: 0 … 600 mm

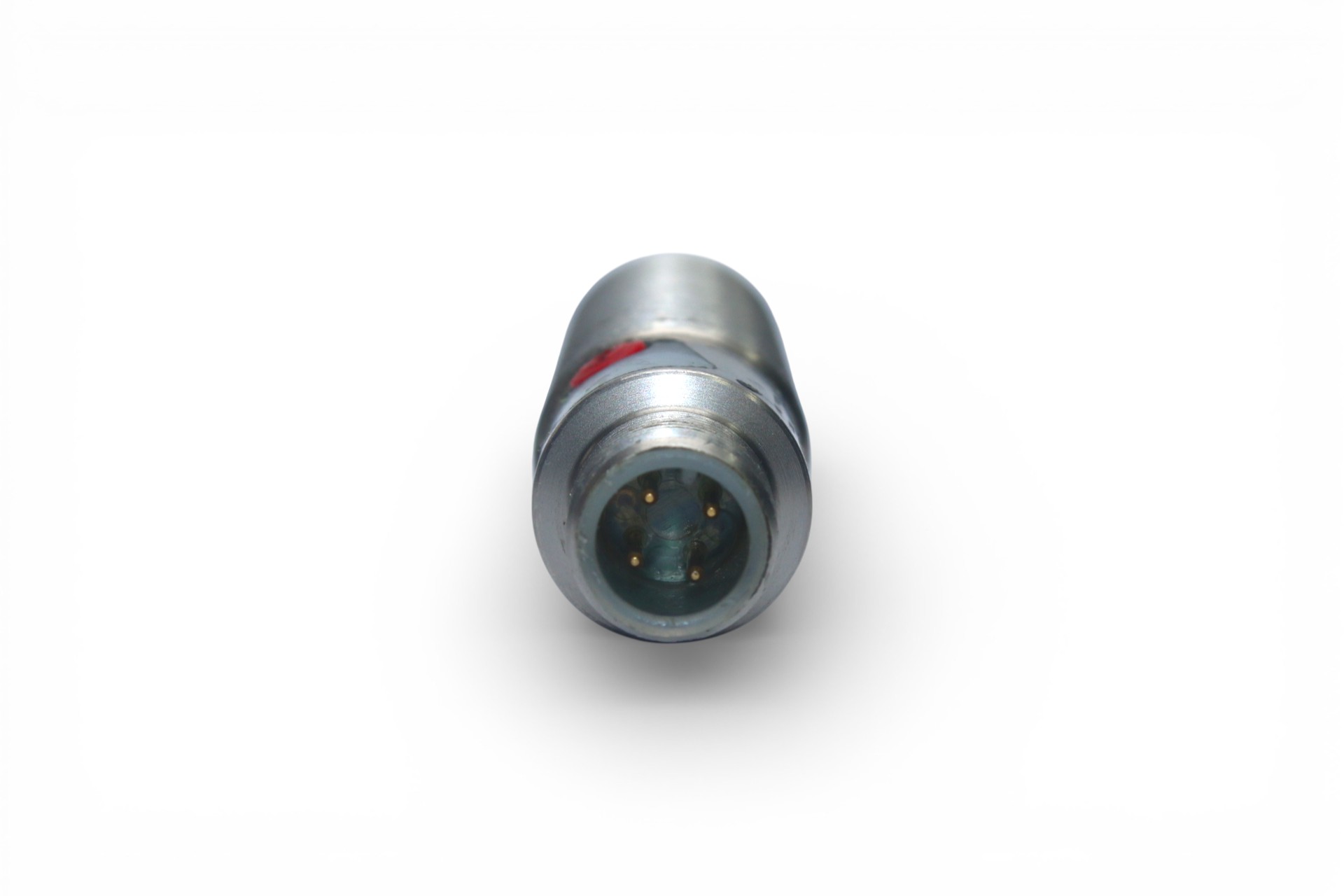

Connection: Connector, M12 × 1-Male, 4-pin
Housing Material: Brass, nickel-plated
Material Sensing Surface: Glass, anti-glare
Operating Voltage Ub: 10 … 30 VDC
