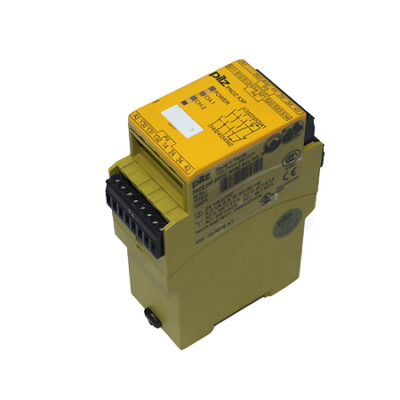

Pilz PNOZ X3P 24VDC 24VAC 3n/o 1n/c 1so Safety Relay 777310

Manufacturer: Pilz
Model: PNOZ X3P 24VDC 24VAC 3n/o 1n/c 1so
Type: Safety Relay
Part No.: 777310

Supply voltage: 24  V
Type of supply voltage U1: AC/DC
Power consumption AC: 5  VA
Power consumption DC: 2.5  W

Number of inputs: 2
Number of semicond. outputs: 1
Tolerance ext. volt. DC S/C: -20 %/+20 %

Voltage AC1 safety cont.: 240  V
Max. current AC1 safety cont.: 8  A
Voltage DC1 safety cont.: 24  V
Max. current DC1 safety cont.: 8  A
Voltage AC15 safety cont.: 230  V
Max. current AC15 safety cont.: 5  A
Voltage DC13 safety cont.: 24  V

Connection terminal: Screw terminal
Terminal style: plug-in
Ambient temperature: -20 - 55  °C
