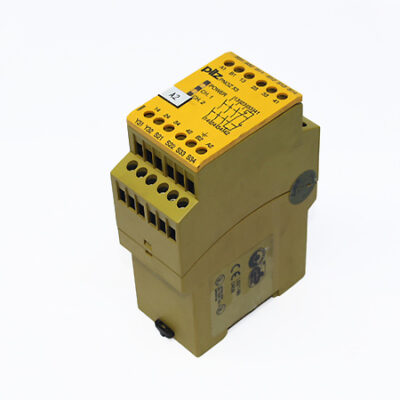

Pilz PNOZ X3 230VAC/24VDC 3S 1O Safety Relay 774318

Description

Manufacturer: Pilz
Model: PNOZ X3 230VAC/24VDC 3S 1O
Type: Safety Relay
Part No.: 774318

Supply voltage (V): 230  V
Type of supply voltage U1: AC
Power consumption AC: 5  VA
Supply voltage 2: 24  V
Type of supply voltage U2: DC
Number of inputs: 2
Number of semicond. outputs: 1
Tolerance ext. volt. DC S/C: -20 %/+20 %
Voltage AC1 safety cont.: 240  V
Max. current AC1 safety cont.: 8  A
Voltage DC1 safety cont.: 24  V
Max. current DC1 safety cont.: 8  A
Voltage AC15 safety cont.: 230  V
Max. current AC15 safety cont.: 5  A
Voltage DC13 safety cont.: 24  V
Connection terminal: Screw terminal
Terminal style: fixed
Ambient temperature: -20 - 55  °C
